4 High Intensity LEDs of the Litemove AEW-230 E-Bike headlight produce a 10 m wide light beam and enable a far distance view pattern of up to 300 m, providing the rider with the best visibility on the Trail or in poor light conditions.

No matter how dark the surroundings are, the front light which is particularly suitable for mountain bikers provides optimal illumination with a maximum of 950 lm and an output of 230 lx (High Beam) or 170 lx (Low Beam). In order not to dazzle oncoming road users, the headlight features a high beam function that can be switched on and off via handlebar remote control as well as a lens with an embedded Cut-Off Line that specifically controls the light output in both modes.

The clever design with openings surrounding the housing made of CNC-machined aluminium also guarantees optimal heat dissipation for the right long-term performance and without negatively affecting luminous power. Thanks to its compact dimensions, the powerful front light can be easily attached to the E-Bike without affecting other components. For individual mounting, Litemove offers the right bracket for every application.

Technical details of the Litemove AEW230 headlight

• light source: 4 High Intensity LED's
• illuminance: 230 lx (High Beam) / 170 lx (Low Beam)
• luminous flux: 950 lm (High Beam) / 550 lm (Low Beam)
• color of light emitted: 6000 K (± 5 %)
• optical technology: MTi Plus
• power consumption: 15 W (High Beam) / 7.3 W (Low Beam)
• input voltage: 12 V (DC)
• operating temperature: -25°C ~ +70°C
• dimensions: 63.1 x 49.9 x 52 mm
• cable length: 1400 mm
• type of approval: StVZo-K / ISO

MTi (Multi-Beam integration)

The innovative MTi technology uses a high efficiency aspheric lens designed to offer a complex distribution of multi-beam patterns, giving the light a wider and greater coverage, providing optimum illumination for maximum safety.

Producing this aspheric lenses requires precision glass molding, precision polishing, single point diamond turning and injection molding. High-precision technology that helps to reduce waste to a minimum and provides the most efficient lighting result.

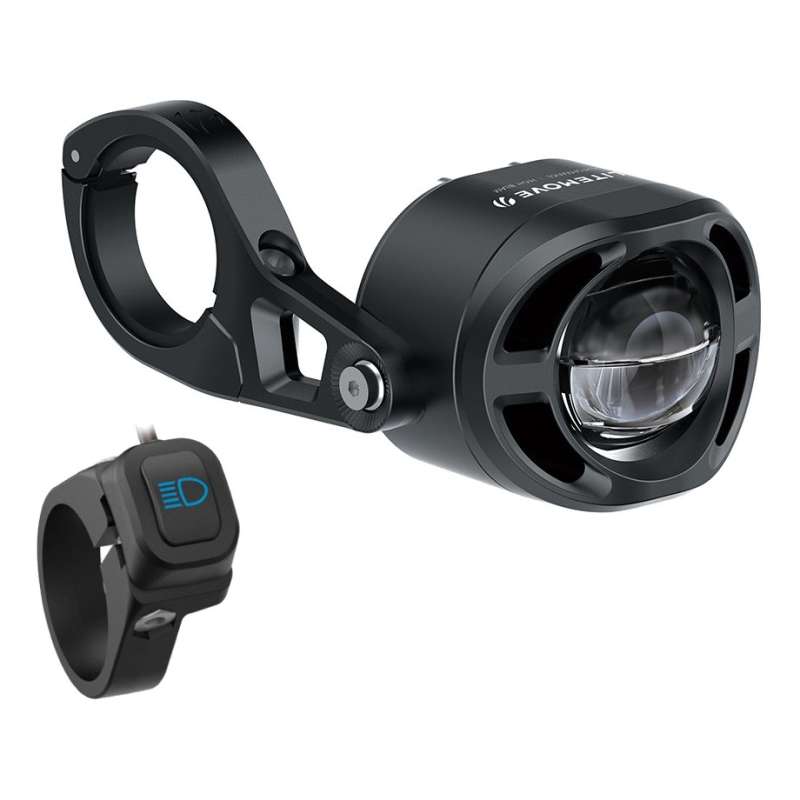

Scope of supply:

• front light
• adapter / bracket for mounting
• 2-piece high beam handlebar switch (⌀ 22.2 mm)

Notes:

• Only apply with DC power sources from 12 V! Do not use it to an AC power source!
• The light itself does not feature a switch function. It will be turned on and off by your E-Bike system controls.
